QUCARE Multi Meter

본문


icon.png Perfect Lipid Test Profile
icon.png Visible 4 results for TC/HDL/TG/LDL on one screen shot
icon.png Rechargeable battery at any where
icon.png Light and compact design
icon.png Easy to use with auto-coding system.

Qucare® Multi Meter

Coding Auto-Coding (Meter identifies strips automatically)
Power supply Internal rechargeable battery (3.7V, 1000 mAh Lithium polymer battery)
Battery Recharge By Mini USB port
Life of Rechargeable Up to 500 tests per 1 time full-recharge
Interface USB, Bluetooth(option)
Memory 1,000 test results
Measurement Range mg/dL or mmol/L
W’gt 120g
Dimension Width(130 mm), Depth(68 mm), Height(23 mm)
Warranty 1 year
Optional Accessories External printer, Bluetooth
Operational condition 18-30 ℃, 30-50% RH

Qucare® Test strips

Product name Test category REF No Reading time Specimen and
sample volume
Test Range
Qucare® Lipidtest strips TC (Total Cholesterol) 6202 2 min Whole blood(Capillary blood),
Serum(professional only)
7 µL per hole
100~500 mg/dL
TG (Triglycerides) 45-650 mg/dL
HDL (High Density Lipoprotein cholesterol) 15~100 mg/dL
LDL (Auto-calculation)
(Low Density Lipoprotein cholesterol)
*When triglycerides are > 350 mg/dL,
impossible to calculate LDL.
Friedewald formula :
LDL=TC(total cholesterol)-HDL-(TG(triglyceride)/5)
Qucare® Total cholesterol test strip TC 6002 2 min Whole blood (Capillary blood),
Serum (professional only)
7 µL per hole
100~500 mg/dL

How to use

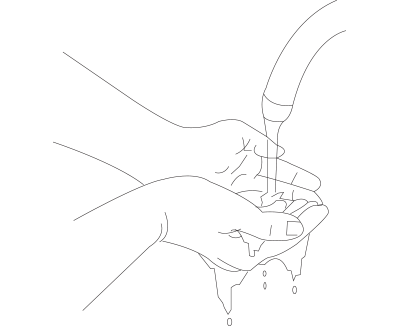

Step 1.

Wash and dry your hands before testing.

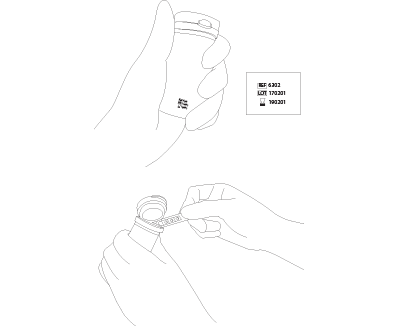

Step 2.

Remove a test strip from the container and close the cap tightly.


Step 3.

Insert the strip into the meter.

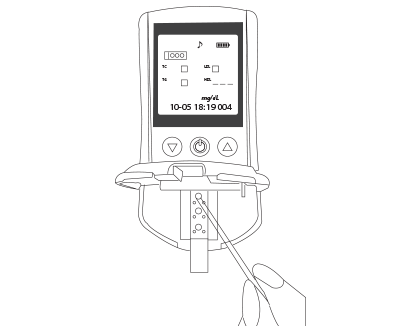

Step 4.

Obtain a blood sample from a fingertip by a capillary tube and drop it on the test strip

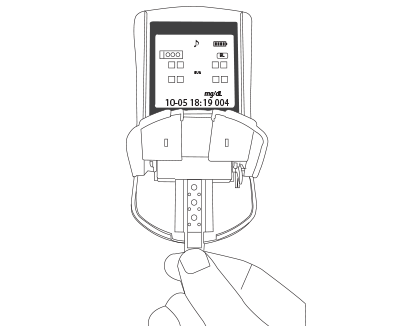

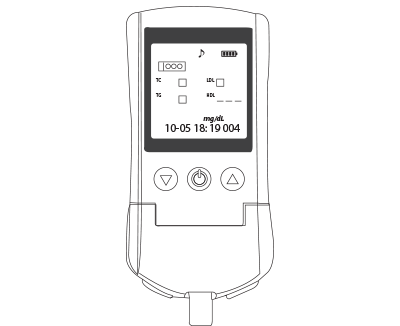

Step 5.

Close the flap and check the results
Lipid test : 2 minutes
